Convert Oracle to SQLite.

Our DBSync/DBConvert is an ideal solution for quick and accurate two-way database conversions and synchronizations between Oracle and SQLite databases. Our software is really easy to use and capable of transferring your critical data with no hassle from Oracle server to SQLite database and back.

Adjust rules for performing migration process using our step-by-step intuitive GUI. Otherwise, you can schedule conversion and sync to automate your data transfers. Our powerful Command line mode is also available for launching previously saved jobs.

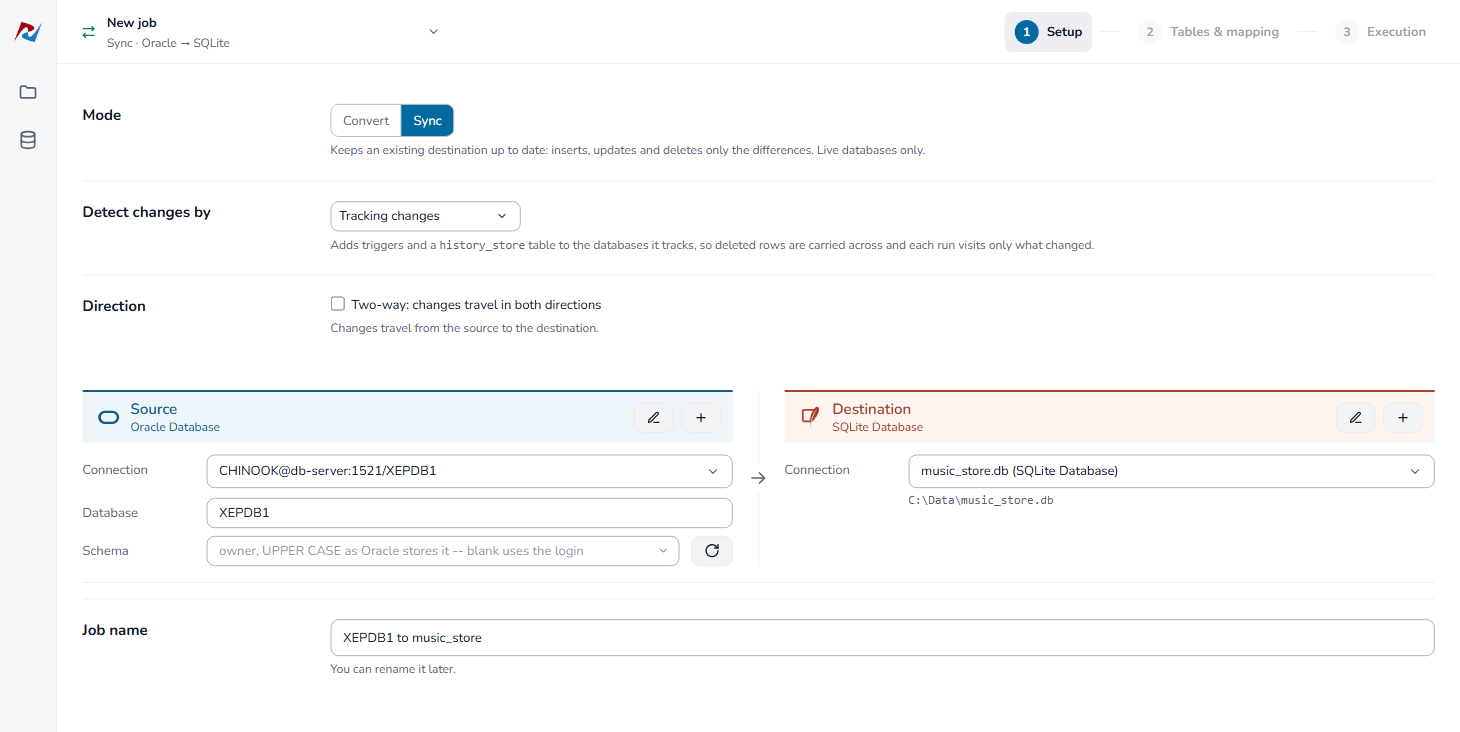

Three synchronization options allow users to insert, update or delete only modified data to always keep databases fresh with accurate data.

Look at this Oracle related FAQ section to resolve Oracle errors you may find in your conversions.

 Amazon RDS configuration manual for DBConvert.
Supported databases:
  • SQLite
  • Oracle On-Premises
  • Oracle Cloud
  • Oracle Dump
 DBConvert for Oracle & SQlite

Version: 1.2.7

Release Date: Nov. 30, 2022

 DBSync for Oracle & SQlite

Version: 1.2.6

Release Date: Feb. 21, 2022

Try All-in-one DB migration and Sync software.

DBConvert Studio

 Version: 3.4.4

Release Date: Sept. 16, 2023

Supported databases:

  • SQL Server
  • MySQL
  • MariaDB
  • Percona
  • Oracle
  • PostgreSQL
  • Access
  • FoxPro
  • SQLite
  • Interbase
  • Firebird
  • IBM DB2
  • MS Azure SQL
  • Amazon RDS
  • Amazon Aurora
  • Heroku Postgres
  • Google Cloud

Using Oracle to SQLite conversion and synchronization tools.

When you start DBConvert or DBSync application in GUI mode it guides you through several steps to set up the database migration or synchronization:

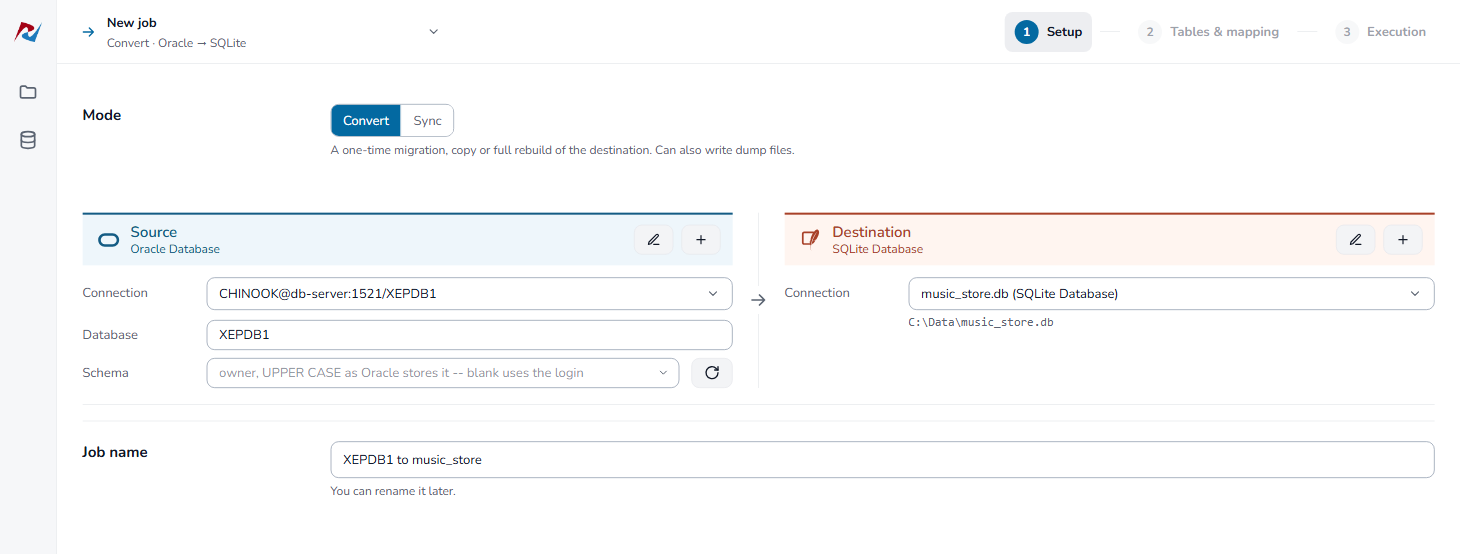

1. Connect to Oracle source database.

If a source database requires you to log in, you can specify a user name/ password and host/ port parameters.

Connect to Oracle source database from DBConvert

2. Connect to SQLite destination database.

Specifying parameters for destination database looks like the same as for source. Usually, it consists of defining connection settings and username/password pairs.

Connect to SQLite target database from DBConvert

NOTE #1: Every DBConvert or DBSync tool has two different databases in its name. That means any specified database from a pair can be set up as a source or destination. Besides, the same type of database may be set up both as a source or destination.

As an example, here is the list of possible migration directions with on-premises databases:

  • Oracle to SQLite
  • SQLite to Oracle
  • Oracle to Oracle
  • SQLite to SQLite

NOTE #2: Don't be confused by the fact that connections to cloud databases like Amazon RDS, Google Cloud, and Heroku are not explicitly specified in the configuration of a source or destination in the DBConvert / DBSync interface. To connect to Cloud database instances, use the same settings as you do for traditional on-premises databases.

NOTE #3: Your connections to source and target databases stay active until you close DBConvert/ DBSync application or reopen new connections on "source" and "destination" steps.

Read more about the specific source/ destination configurations for different databases.

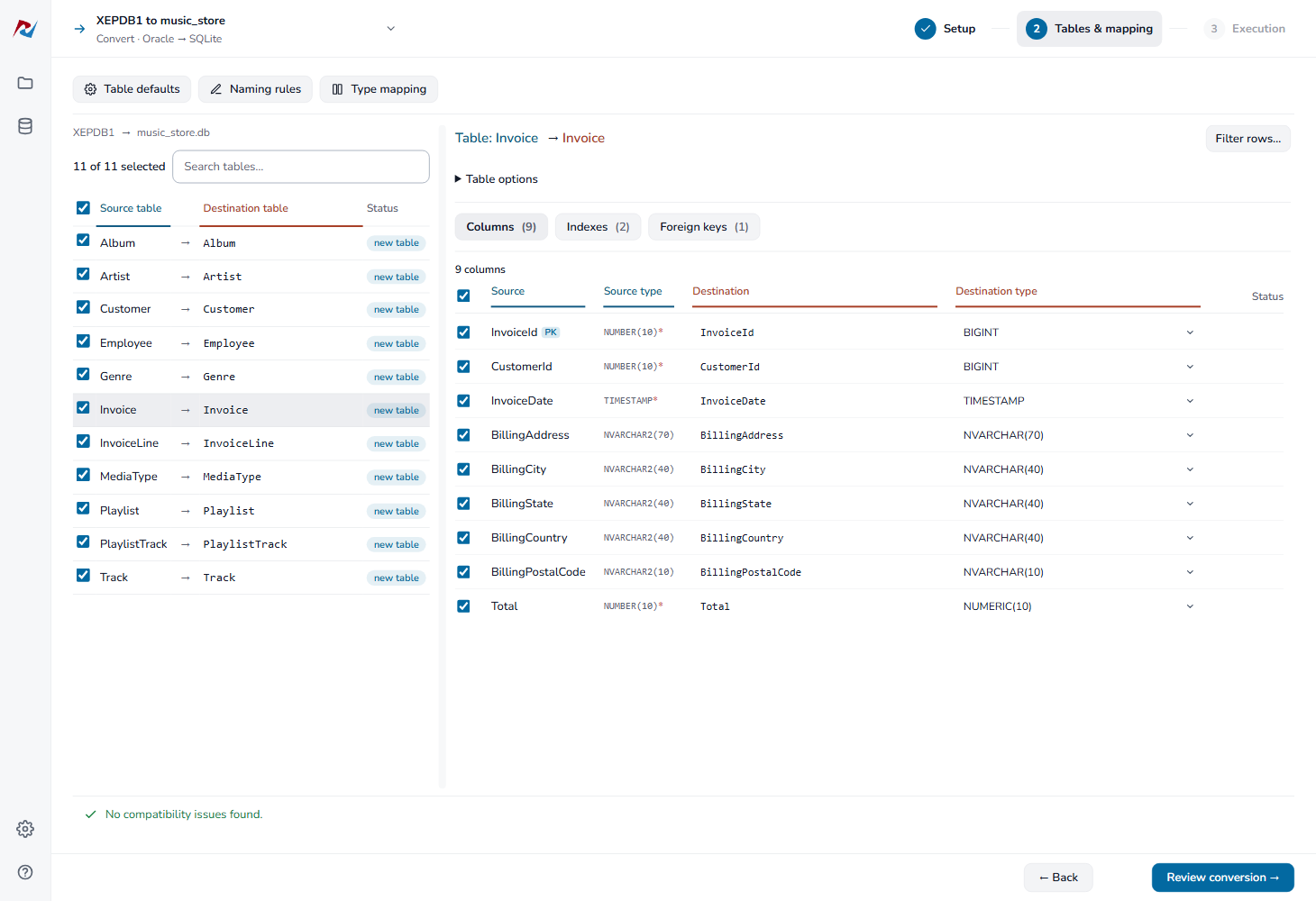

3. Configure database migration options.

At the next step, you can specify precisely which tables, fields, indices, views you want to transfer to the SQLite destination database. Just check/ uncheck the box in front of each database object you want to convert.

Customize general database/ tables settings. Or set up a particular table , field, index individually when migrating data from Oracle to SQLite.

Check out our articles about Configure database migration options. for detailed information.

The screenshot below sums up general features available in DBConvert software solutions.

4. Detection of potential database migration issues. Errors and Warnings

The database typically constrains certain relations on the data that cannot be violated. On the customization step, a smart error checker verifies all possible Data integrity and Referential integrity issues and highlights them, if any, before performing a migration.

By default, DBConvert tries to automatically map the database types of the source Oracle database to the closest equivalent of the target SQLite database types. However, you can manually change the data types for the entire database globally using the "Global mapping" or individually for each field.

Check out Smart error checker. Errors and Warnings for more information.

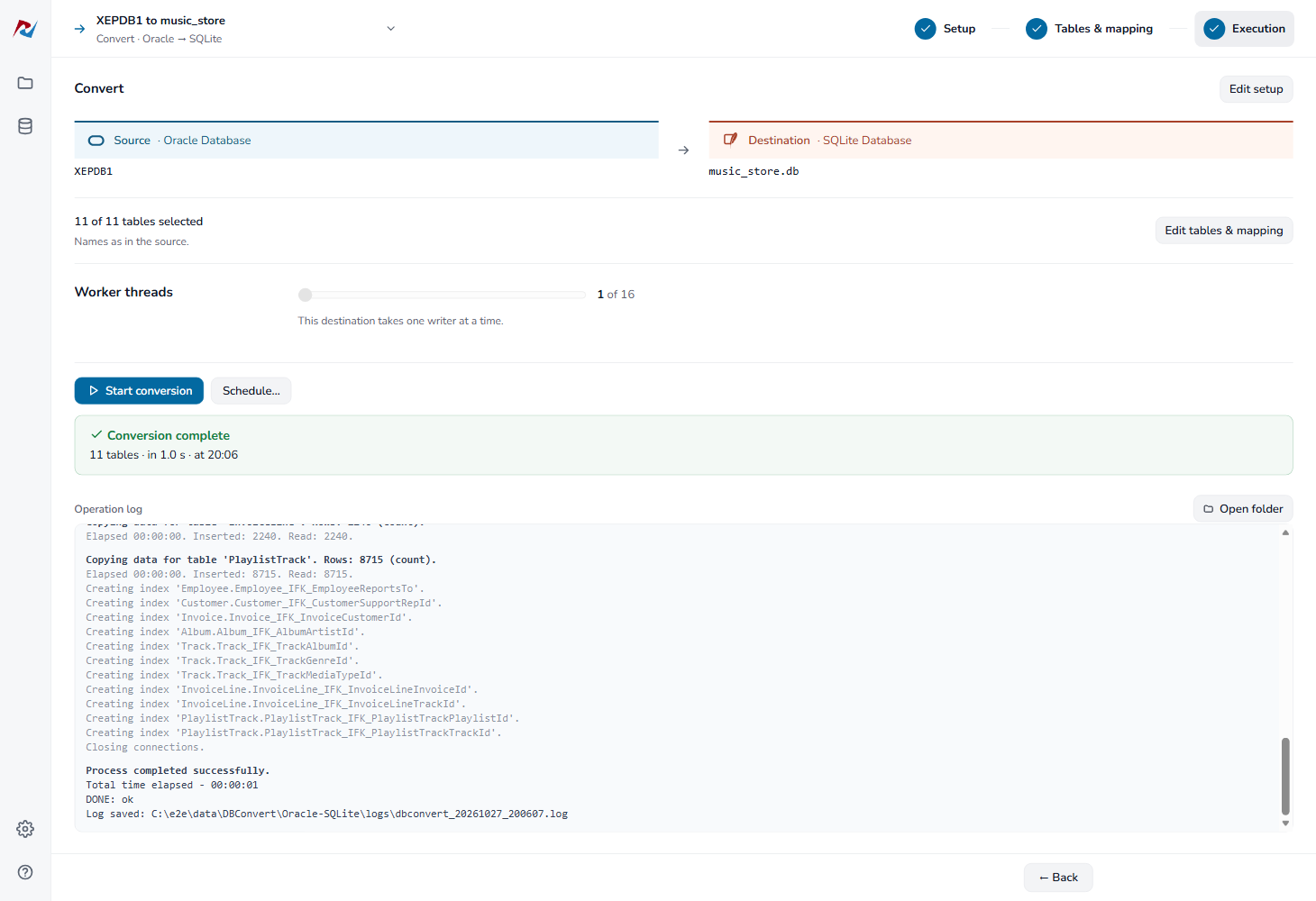

5. Execution. The final stage of data migration from Oracle to SQLite

Once you configure source and destination databases for migration in the previous steps, you can start the actual conversion or synchronization process.

Click the "Commit" button to start conversion. Also, here, you can monitor the migtation/ synchronization process.

Optionally save connection settings and configuration parameters into the session file to schedule the launching of sync or migration jobs regularly.

Execution step of DBConvert products

Read more about execution stage available options.

Command line mode

Previously saved sessions can be passed as parameters to Command-Line DBConvert Client. A session keeps Oracle source and SQLite target database connection settings with other specified options.

Example: C:\Program Files\DBConvert\oracle2sqlitePro\oracle2sqlitePro_Cons.exe /Session:"Session_Name"

NOTE: First, you have to run the software in GUI mode to create a session file with initial parameters.

Built-in scheduler.

Our applications come with a built-in scheduler to run database migration and sync jobs at specified times. Just set the scheduled date and time to execute job sessions automatically.

Find more Information about built-in scheduler

DBConvert screenshot

Supported OS:

Requirements

  • Necessary privileges to write into network shared folder (LAN or VPN) where destination database SQLite resides
  • Oracle 12.x versions require Oracle Database 12c Release 2 Client (12.2.0.1.0) for Microsoft Windows (32-bit) to be installed.
  • Necessary privileges to write into database on the target Oracle server (this requirement is optional as there is an option to overcome the restrictions using dump file)

Related Links

Highlights

  • Saving data into an Oracle Dump for export to Oracle database
  • SQLite database size optimization
  • Oracle 10.x.x/ 11.x.x/ 12.x.x, 18.x.x, 19.x.x, Oracle XE (Express Edition) located on Linux, Solaris, Mac OS X, Windows machines
  • Oracle Cloud support
  • SQLite version 3.0 and higher support
  • Views conversion from Oracle to MS SQL and MySQL and back support
  • Speed conversion with Bulk and Quantization features
  • ODBC Oracle and Oracle client are not required
  •  DBConvert Key features.

Read information about reverse migration.
